FORJ X.60 אידאלי ליישומים עם יותר מ-6 ערוצים.
ה X.60 מכסה את הטווח מ7 ועד 109 ערוצים.
הסיבים יכולים להיות Single Mode ,Multi Mode וקומבינציה של שניהם.

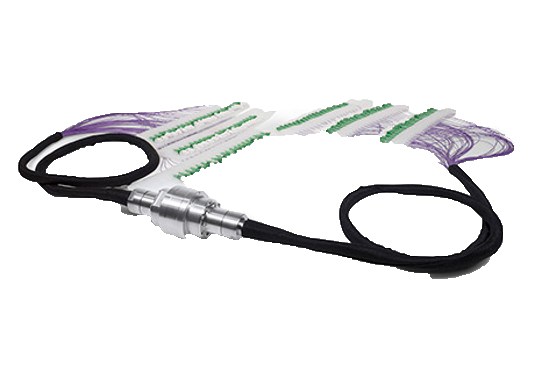

FORJ X.60
| x.80 | x.60 SLAT | x.60 | x.40 | x.25 | FORJ |
|---|---|---|---|---|---|
| 2-8 | 16-81 | 7-36 | 3-8 | 2.4 | Channel count |
| 3.5 (typ. 1.5) CH 2 – 4 4.5 (typ. 2.5) CH 5-8 |
3.5 :CH 16 – 32 4.5 :CH 33 – 48 5.5 :CH 49 – 81 |
3.5 (SM) 3.5 (MM) |
3.5 (SM) 3.5 (MM) |
3.5 (SM) 3.5 (MM) |
Max. insertion loss (dB) |
| 2.5 (typ. 1.5) | 2.5 (typ. 1.5) | 1.5 | 1.5 | 1.5 | Max. variation of insertion loss over rotation (dB) |
| 40 (typ. 45) | 40 (typ. 45) | 50 | 50 | 50 | Min. return loss (dB) |
| 1310nm or 1550nm | 1310nm or 1550nm | SM: 1310nm/1550nm MM: 850nm/1300nm |
SM: 1310nm/1550nm MM: 850nm/1300nm |
SM: 1310nm/1550nm MM: 850nm/1300nm |
Wavelength |
| Single-mode E9/125 | Single-mode E9/125 | Single-mode E9/125 or multi-mode 50/125 or 62.5/125 Mixed configuration with multi-mode and single-mode up to 36 CH |
Single-mode E9/125 or multi-mode 50/125 or 62.5/125 Mixed configuration with multi-mode and single-mode up to 36 CH |
Single-mode E9/125 or multi-mode 50/125 or 62.5/125 Mixed configuration with multi-mode and single-mode up to 36 CH |
Fiber type |
| 60 | 150 | 150 | 1,000 | 1,000 | Rotation speed (rpm) |
| 3000 | 1500 | 1500 | 700 | 250 | Weight (excl. connectors) (g) |
| 1 | 0.15 | 0.15 | 0.15 | 0.08 | Torque (Nm) |
| IP68 up to 4,500 m op. depth up to 10,000 m on request seawater resistant |
IP54, IP65 | IP54, IP65 | IP54, IP65 | IP54, IP65 | Degree of protection |
